Quick Details

  • Products Status: Stock
  • Operating System: Android 4.4.2
  • Processor Type: Quad-core 1.3Ghz
  • Style: Handheld PDA Terminal support 1D Barcode Scanner
  • Memory Capacity: 1GB DDR;ROM:8GB
  • Screen Size: 4.5 inch TFT LCD (Transflective screen VGA)
  • Weight: <380g
  • Brand Name: MobileX
  • Model Number: MX4500
  • Place of Origin: Guangdong, China (Mainland)
  • Color: Yellow
  • WLAN: WIFI 802.11 b/g
  • Interface: Mini USB / RS 232
  • Barcode: 1D/2D codes/QR code
  • RFID: 13.56Mhz,ISO/IEC14443A/B;LF,UHF
  • Name: All in one,three kinds OS,rugged customized industrial PDA
  • Product name: PDA

Packaging & Delivery

Packaging Details standard packaging
Delivery Time 3-5days for sample,2-3weeks for bulk order

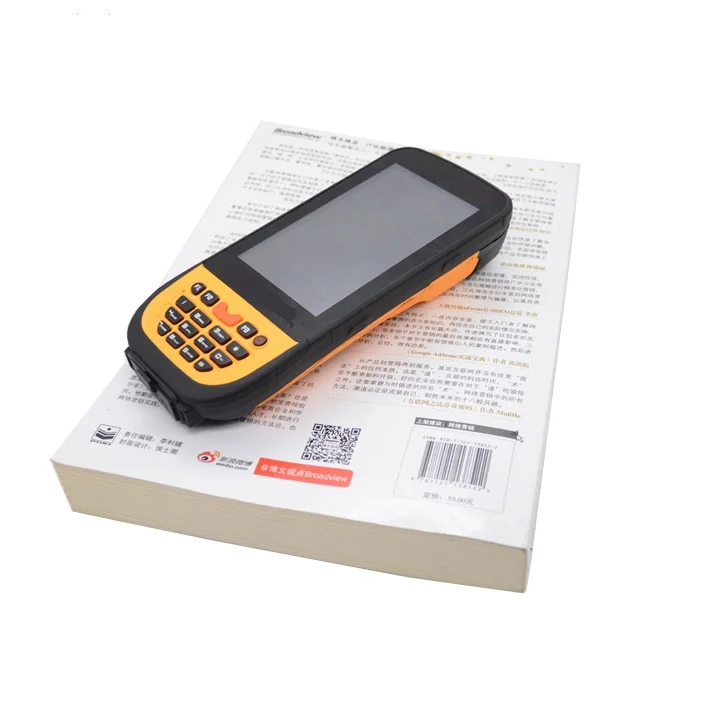

IP65 Industrial PDA with 3G,433Mhz module,Zigbee     (MX4500)
MX4500 Device with  options
android OS
OSAndroid 4.4.2
Hardware
Core boardCPU Quad-core 1.3Ghz
ARM® Cortex-A7 MPCoreTM  (LPDDR2 and LPDDR3)
WWLANGSM band 850/900/1800/1900MHz, Class 12 GPRS, EDGE UMTS 850/900/1900/ 2100MHz  HSPA
Flash ROM8GB
RAM1GB DDR3
Motherboard
Display  @4.5inch IPS  480*854
touch screenMulti-point touch capacitive screen
Form FactorBar type classical PDA,Industrial appearance
GPSSupports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
Bluetoothv2.1+EDR    /   3.0+HS  /  v4.0 Low Energy (LE)
WiFi2.4Ghz  802.11 b/g/n
MSR(Optional)Compatible with one, two, three track. (without PCI, EMV security certification.)
PSAM(Optional)ISO7816  (SIM card interfance)
IC card reader(Optional)ISO7816 ID-1
Fingerprint readeroption 1UPEK TCS1  (meet the FBI’s FIPS-201)
option 2UPEK TCS2SS

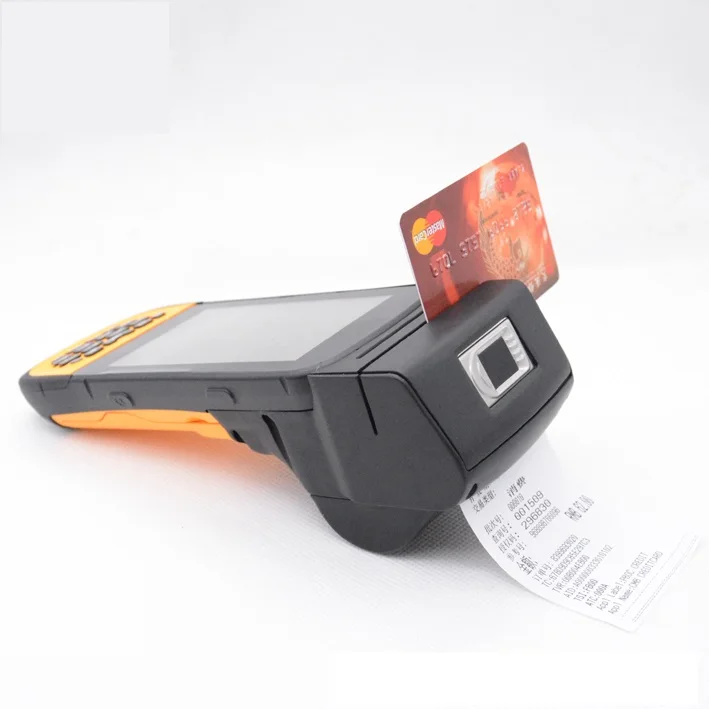

printer2 inch Direct thermal line printing
Far Infrared Meter Reading (Optional)IEC62056-21(IEC1107) communication protocol
433Mhz moduleRequire customers to provide 433Mhz wireless modules or specifications.
zigbeeRequire customers to provide 433Mhz wireless modules or specifications.
RFID Readeroption 1LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX)
option 2LF RFID(125KHz)
option 3HF RFID(13.56MHz  ISO 1443A/B    ISO 15693)
option 4NFC(include 13.56MHz  ISO 1443A/B )

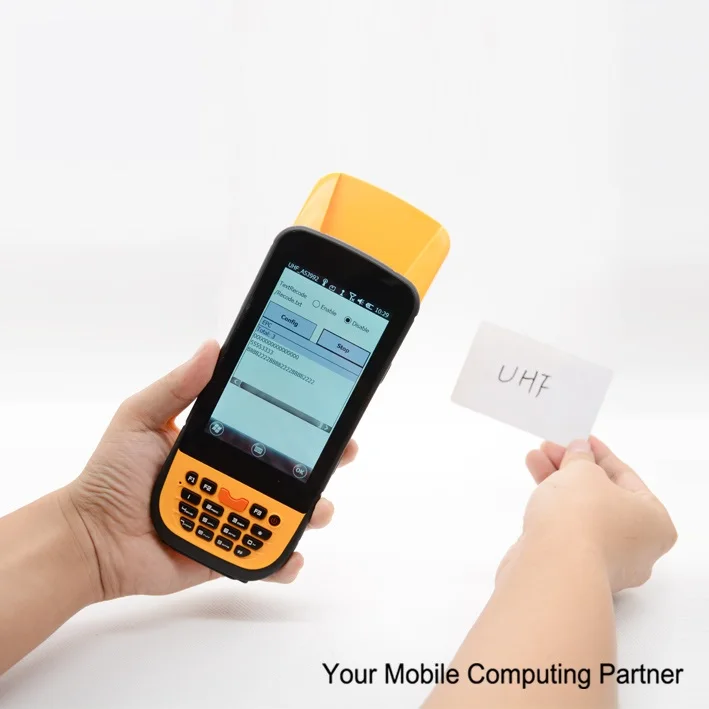

option 5 UHF RFID 860-960MHZ  ISO18000-6C (EPC Gen2)  /  ISO18000-6A,B compatibility in direct mode----with AS3992 shipset
barcode scanneroption 1NEWLAND:EM1300(1D barcode reader)
option 2NEWLAND:EM3000(1D/2D barcode reader)
option 3symbol:SE955(1D laser barcode reader)
option 4HoneyWell:N4313 (1D laser barcode reader)
option 5Symbol: se4500(1D&2D barcode reader)
External InterfaceUSB HOST/RS232(Customized)
Protection classIP65
Drop resistance level 1.5m
Camera FunctionCamera8MP Camera
VideoSupport still image and video capture
SensorG-sensorLIS3DH
CompassAK09911C
GyroMPU3050C
LightSTK3410
KeypadFront 17
Side4
InterfaceMini-USB connectorUSB2.0 connection
SIM card slot*2
TF card slotYes
power jackYes
Audio JackYes
BatteryTyperechargeable Li-ion battery 4500mAh
Standby Time500hours
Calls TimeUp to 6hours
Charging Time4 hours
Physical CharacteristicsDimension175*76*27mm
Weight>400g with battery (according config)
UHF RFID antanna1Circularly polarized Dielectric Ceramics
Antenna model: 40*40*5mm
Frequency Range: 922.5MHz±8MHz
Gain(Typical): 2dBi Based on65×65mm ground plane
Impendence: 50 ohm
UHF RFID antanna2Circularly polarized Dielectric Ceramics
Antenna model: 40*40*5mm
Frequency Range: 865MHz-868MHz
Gain(Typical): 2dBi Based on65×65mm ground plane
Impendence: 50 ohm
UHF RFID antanna3Circularly polarized Dielectric Ceramics
Antenna model: 35*35*5mm
Frequency Range: 922.5MHz±8MHz
Gain(Typical): 2dBi Based on35×35mm ground plane
Impendence: 50 ohm
Printer Module Specifications
Printing method Direct thermal line printing
Paper width57mm
Print width48mm
Resolution Ration8 dots/mm (384 dots/line )
Life of printing head5,000,000 -15,000,000 character lines
Printing speed40-60mm/sec
Character size8*16dots , 12*24dots
Paper supplied57mm wide , 22mmø
InterfaceSerial RS232C/TTL
Operating temperature0℃--50℃
Storage temperature-20℃ --  60℃
Operating humidty10%--80%
Storage humidty10%--90%
Fingerprint Module Specifications
sensorUPEK TCS2SS
1:1 verification matching speed< 500ms(Feature extraction and fingerprint matching)
1:1000 Fingerprint search time< 1s
Resolutions500DPI
Image Size256x288 pixels
Security level5, adjustable
Capacity1000 fingerprints
FAR<0.005% (Security Level is 3)
FRR<0.008% (Security Level is 3)
Working current<100mA
Peak current<120mA
Communication interfaceTTL(RS232)
Communication Baud rate38400bps,57600bps,115200bps
Working temperature-10℃~50℃
Working humidity45%RH~85%RH (no dew)
